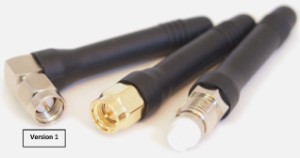

Version 1

SMA (m) angle, nickel

**Small size -low profile **Simple installation

GSM/UMTS

Specifikations

GSM / UMTS mounting antenna

Frequency

AMPS 824-894 MHz

GSM 900 / 2100 MHz

WiFi / Bluetooth 2,4 GHz

DCS   1800 MHz,   DCS   1900 MHz

Impedance

50 Ohm

Polarisation

Vertikal

Gain

2,2 dBi

VSWR

< 2:1

Dimensions

53mm x9,65 mm 22mm H x Ø

Colour

black

Weight total

Materials

ABS, stainless steel and brass

Mount Type

Operating temperature

-40°C to + 85°C

Cable

without

Artikel Nr.

420
